ERC-1400 is a proposed standard dated from 2018 and originally proposed by Polymath.

Its objective is to represent securities on Ethereum and EVM blockchains and allow tokenizing financial assets. To achieve this, it adds several functionalities over the ERC-20 standard related to the management of securities.

It is important to note that this standard never reached the final stage as an ERC, contrary to ERC-3643, and is still considered a proposal. Its specifications are available on GitHub.

Details

ERC-1400 contains four other ERC proposals: ERC-1410, ERC-1594, ERC-1643, and ERC-1644.

These proposals define how to transfer tokens and introduce additional features, such as the management of documents for ERC-1644. The main features include:

• Represent partially-fungible tokens (ERC-1410).

Every ERC1400 token can be partitioned. The partition of a token represents its state and can be used to represent different classes of assets, performing corporate actions, etc.

• In terms of interoperability, it is compatible with ERC-20 since it also implements its interface.

• Standard interface to query if a transfer would be successful and return a reason for failure (ERC-1594).

• Perform forced transfers for legal action or fund recovery (ERC-1644).

• Transfer with data (ERC-1410 / ERC-1594).

The data field can be used to supply any additional authorization or details associated with the transfer (e.g. signed data from an authorized entity required to perform the transfer)

• Attach metadata to a subset of a token holder's balance, such as special shareholder rights or data for transfer restrictions.

• Manage documents on-chain (ERC-1643).

In short, ERC1400 offers the following advantages:

• By implementing the ERC-20 interface, it ensures compatibility with the entire ERC-20 ecosystem, including DApps, tools and crypto exchange.

• It enables the representation of various asset classes, such as lock tokens and collateralized tokens.

• Finally, by allowing data to be attached to transfers, it supports enhanced verification processes based on this filed, such as signature validation.

  Implementation and setup

  One of the available ERC-1400 implementations is UniversalToken written by Consensys, a reputable and well-known company in the blockchain industry. The implementation is also under Apache-2.0 license, a permissive license.

  Another implementation is from Polymath, but we have decided not to use it, as the code is more complex, and the project has not appeared to be publicly maintained since 2019.

  As a disclaimer, we used this implementation for our tests, without making any modifications. We have also not carried out an external security audit on smart contracts, and we guarantee neither the security nor the proper functioning of these contracts.

  We have created a fork of this project, available on the Taurus GitHub, to compile it with Hardhat and the following configuration:

  • Solidity version: 0.8.7 (same version as the original project)

  • OpenZeppelin version: 4.7.3 (latest compatible OpenZeppelin version)

  We tested our setup using our product Taurus-CAPITAL, a platform to deploy and manage smart contracts, as well as Taurus-PROTECT, for the custody part. We ran the test on an Ethereum testnet (Sepolia)

  You can find comparison with other standard (CMTAT, ERC-3643, tokenF) in our articles:

  • Tokenization on Ethereum and EVM Blockchains: Which Smart Contract Should You Use?

  • Security Token Standards Compared: CMTAT vs ERC-1400 vs ERC-3643

  Overview

  Here is the UML diagram of the architecture made with solidity-visual-auditor.




Access Control

The access control is defined with several different roles.

The schemas were created using draw.io.

There is also a specific access control for each specific partition.

The default partitions are not concerned by this access control.

Proof of concept

Here is the list of the different actors and their address:

See transaction on Sepolia Etherscan.

Balance check

We check the total balance of our token holder A by calling the ERC-20 function balanceOf and the balance of the default partition by calling the specific ERC-1400 function balanceOfByPartition.

Issue with partition

Newly partition

We will use now to a newly specific partition:

0x7265736572766564000000000000000000000000000000000000000000000000

UniversalToken

Taurus-CAPITAL

See transaction on Etherscan Sepolia.

Check balance

We can check the difference balance.

The total ERC20 balance is now 90 since our token created for the new partition are added to the tokens related for the default partition (previous example).

ERC20 Total Supply

After our two issuances, the ERC20 total supply is also worth 90.

• 50 tokens in the first default partition

• 40 tokens in our newly partition: 0x7265736572766564000000000000000000000000000000000000000000000000




  Second default partition

  When we use the standard ERC-20 transfer, the issued tokens will be contained inside the first default partition.

  If we want to issue tokens to our second default partition created at deployment, we have to use the function issueByPartition.



Taurus-CAPITAL

See transaction on Sepolia Etherscan.

Total Partition

Each partition, including default partitions, which have more than 0 tokens associated, is included in the list of total partition.

If all the tokens are burned with one of the functions redeem, then the partition will be removed from the list.

Transfer

Transfer by partition

Transfer by Partition

See transaction on Sepolia Etherscan.

Code:

UniversalToken

ERC20 Transfer

In the case of an ERC-20 transfer, the function will go through all the different default participations and will transfer tokens from each participation until the value is reached:

See transaction on Sepolia Etherscan,

Balance:

Total balance is 105 (Issuance) - 10 (first transfer) - 45 (second transfer) = 50

Our first token holder has now zero in the balance of its partition. It initially had 50 tokens, but we have transferred 55 tokens with our 2 transfers.

The balance of its second partition has decreased by 5 from 15 to 10 because 5 tokens were missing in the first partition to complete the transfer.

Transferred more that owned

We will try now to perform a transfer with more tokens that are owned by our token holder C.

Taurus-CAPITAL

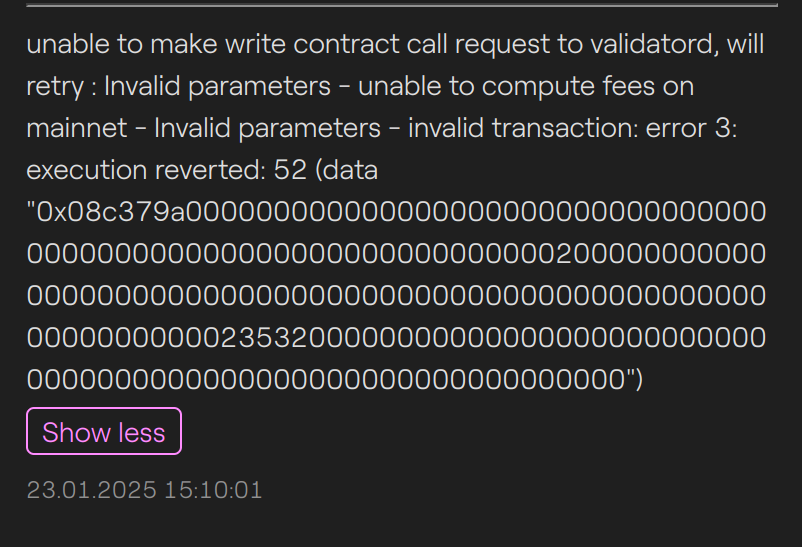

In this case, the smart contract will revert with the string error 52 and Taurus-CAPITAL will directly show an error message to avoid sending the transactions on the blockchain and lose gas fees. Typically, we will have the following error message (see picture).

Inside the smart contract, 52 is the error code to indicate that the balance is not sufficient to perform the transfer. This is defined in the ERC-1400 specification.

UniversalToken

Force transfer

ERC-777 token contracts introduce the concept of operators. An operator is a third party that can act on behalf of a token holder, specifically with the ability to move tokens from the holder’s address. The concept was taken up by the ERC-1400 which, in addition to the concept of operator, introduces that of controller.

A controller is the default operator for all default partitions.

A new controller can only be set by the contract owner, defined at deployment

Force transfer by Partitions

operatorTransferByPartition

If the token is controllable (isControllable returns TRUE) then the controller may use operatorTransferByPartition to perform a force transfer without being explicitly authorised by the token holder.

Check balance

Before performing our test, we check the balance of our token holder A for our target partition.

Perform the transfer

We will try now to perform a force transfer of the tokens held by our token holder A to our token holder C.

Unfortunately, the smart contract rejects the transaction and Taurus-CAPITAL shows a message in the GUI.

Note the transaction is not broadcasted to the blockchain to avoid paying gas fees.

So why we have an error?

Our sender address is a controller and also the owner of the contract.

But when you want to perform a force transfer by specifying the partition, you must be a controller of this partition.

Since we are also the owner of this contract, we can call the function setPartitionControllersto set our address (0xcc6dfa08b554716b59cb80a0cf1f2adbd27a7f0f) as the controller of this partition.

We can now try again, and it works!

See Sepolia Etherscan.

ForceTransfer with ERC20 TransferFrom

Transfer tokens from one address to another.

If the sender is a sender operator or a controller, he can transfer tokens on behalf of the token holder without allowance.

UniversalToken

Since our account is a controller, we can perform a transfer without the allowance:

Check balance

Token Holder A

Token Holder C

Performing the transfer

Taurus-CAPITAL

See transaction on Etherscan Sepolia.

New Balance

Token Holder A: 40 -10 = 30

Token Holder C: 10 + 10 = 20

Redeem (Burn)

Redeem its own tokens

A token holder can redeem (burn) its own tokens.

We will burn 5 tokens from the main partition with the wallet of our token holder C.

Balance check

Function call

Taurus-CAPITAL

Balance check

Our token holder has now 50 - 5 = 45 tokens

Force Burn

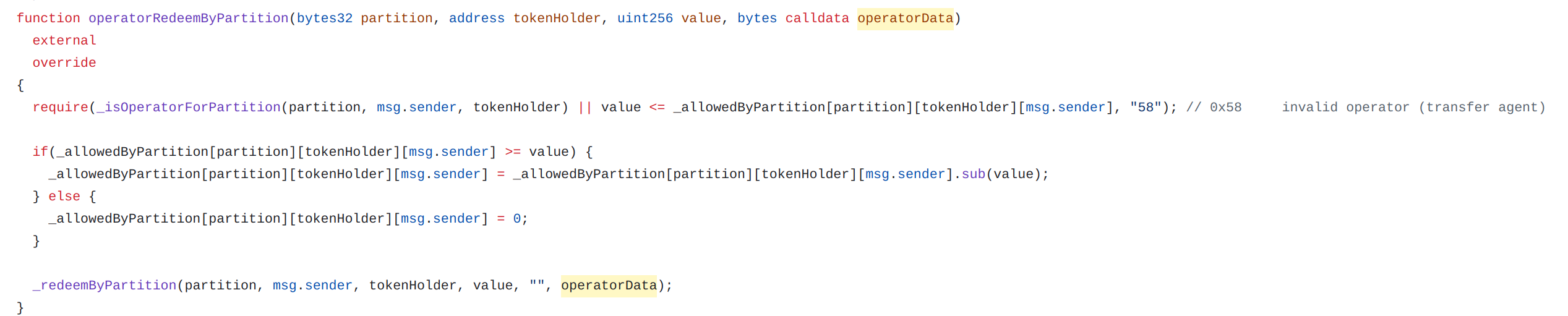

operatorRedeemByPartition

Since the token is controllable (isControllable returns TRUE), the controller can burn tokens through operatorRedeemByPartition or redeemFrom being explicitly authorised by the token holder.

We will burn tokens held by our token holder A in our third partition, a non-default partition: 0x7265736572766564000000000000000000000000000000000000000000000000.

Balance check

Our token holder has now 45-5 = 40 tokens.

Additional points

Compatibility with other ERC

ERC20 compatibility

The ERC-1400 specification indicates that an ERC-1400 implementation must be ERC-20 compatible.
